Quad Spline Gauges 30dec PA suit Involute Splines 15 common DP sizes
- SKU:
- PTO-QSPLC
- Availability:
- If in stock (Please see below price for current stock level) - Ships same day if ordered between Monday-Friday & before 3.30PM Victorian time.
- Shipping:
- Calculated at Checkout
MSRP:
$199.95
$149.95
— You save
$50.00
Frequently bought together:
Description
30DEG Pressure Angle Involute Spline Gauge
4 Quad Gauges Made from Stainless Steel - Made for us
3 of the 4 gauges have 4 different DP Gauges on them with other having 3.
Giving you a total of 15 different DP Gauges to measure against.
Each gauge is clearly marked for easy identification
Extremely hard to source
Includes the following:
| DP Spline Size | Pressure Angle |
|---|---|
| 2.5/5 | 30° |
| 3/6 | 30° |
| 4/8 | 30° |
| 5/10 | 30° |
| 6/12 | 30° |
| 7/14 | 30° |
| 8/16 | 30° |
| 10/20 | 30° |
| 12/24 | 30° |
| 16/32 | 30° |
| 20/40 | 30° |
| 24/48 | 30° |
| 32/64 | 30° |
| 40/80 | 30° |
| 48/96 | 30° |
Related Products
Related Products
Spline Gauges 30dec PA suit Involute Splines 15 common DP sizes
MSRP:
$379.95
$349.95
30DEG Pressure Angle Involute Spline Gauge
Made from Stainless Steel & Made in the USA
<
Spline Gauge 30dec PA suit Involute Splines 15 common DP sizes
MSRP:
$199.95
$189.95
30DEG Pressure Angle Involute Spline Gauge
Made from Stainless Steel - Made for us
Spline DP Cutters - 22mm Bore | 30° | PA In 10 & 20 DP (Cutters 1 to 8)
$164.95 - $898.95
DP External Spline Cutters
A big selection of spline dimetrical pitch cutters.
![HSS - M35 PTO Spline Milling Cutter 1.3/8" x 21 Spline [2.1/2"OD] with 1" Bore 30 Deg Pressure Angle. Supplied by LPR Toolmakers an Australian family owned business that imports high quality Spline Cutters, Gear Cutters & much more. Shipped from Melbourne, Victoria.](https://cdn11.bigcommerce.com/s-c9l4hm6h/images/stencil/590x590/products/4675/14254/PTO-SPLINE-21__33131.1760314694.JPG?c=2 "HSS - M35 PTO Spline Milling Cutter 1.3/8\" x 21 Spline [2.1/2\"OD] with 1\" Bore 30 Deg Pressure Angle. Supplied by LPR Toolmakers an Australian family owned business that imports high quality Spline Cutters, Gear Cutters & much more. Shipped from Melbourne, Victoria.")
![HSS - M35 PTO Spline Milling Cutter 1.3/8" x 6 Spline [2.1/2"OD] with 1" Bore 30 Deg Pressure Angle. Supplied by LPR Toolmakers an Australian family owned business that imports high quality Spline Cutters, Gear Cutters & much more. Shipped from Melbourne, Victoria.](https://cdn11.bigcommerce.com/s-c9l4hm6h/images/stencil/590x590/products/4675/14253/PTO-SPLINE-6__55474.1760314691.JPG?c=2 "HSS - M35 PTO Spline Milling Cutter 1.3/8\" x 6 Spline [2.1/2\"OD] with 1\" Bore 30 Deg Pressure Angle. Supplied by LPR Toolmakers an Australian family owned business that imports high quality Spline Cutters, Gear Cutters & much more. Shipped from Melbourne, Victoria.")
PTO Spline Shaft Cutters 1" Bore 30dec PA 6, 10, 18, 20 & 21 teeth your choice
$454.95 - $524.95
EXTERNAL PTO 30DEG SPLINE CUTTERS

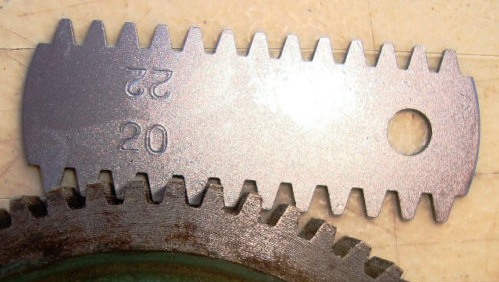

D.P GEAR TOOTH GAUGES 6 to 80 DP 14 leafs 22 sizes
