Parting Tool Block suit 10mm C/height includes Blade & Carbide Insert deals

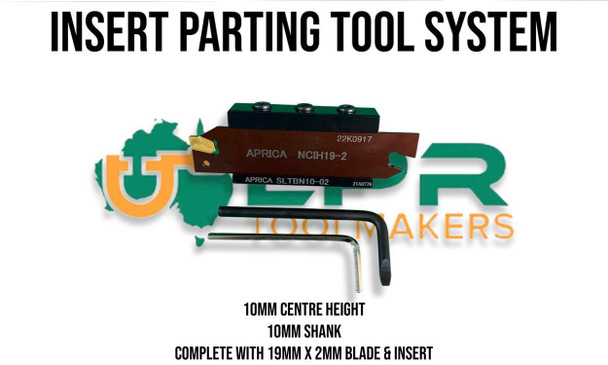

10MM PARTING TOOL INSERT TYPE

Includes 19MM X 2MM BLADE

10MM SHANK & 10MM CENTRE HEIGHT

COMPLETE WITH YOUR CHOICE OF INSERT DEALS (GTN-2)

OPTION 1: BLOCK, BLADE & 1 X INSERT

OPTION 2: BLOCK, BLADE & 5 X INSERTS

OPTION 3: BLOCK, BLADE & 10 X INSERTS

PLEASE NOTE ALWAYS MAKE SURE TIP IS ON CENTER

NEVER HAND OUT BLADE ANYMORE THAN WHAT YOU NEED TO PART OFF

(More information of the inserts and the blade below)

2mm Parting width and will part up to 40 mm
Cut off at the same speed you turn.

- Will suit Machines with at least 10mm Cutting height
- Clamping area is also 10mm
- Suited in all Quick Change Tool post with at least 13mm throat
- These top quality parting tools are manufactured to high tolerances
INSERT GRADE AND BLADE INFORMATION

They are of a special grade and are coated with Alumina. After this it undergoes a special treatment to reduce the roughness on the coating. The insert is held securely to a specially made steel blade which is double ended.

FOR SPARE INSERTS CLICK ME

FOR SPARE CUT-OFF BLADES CLICK ME
