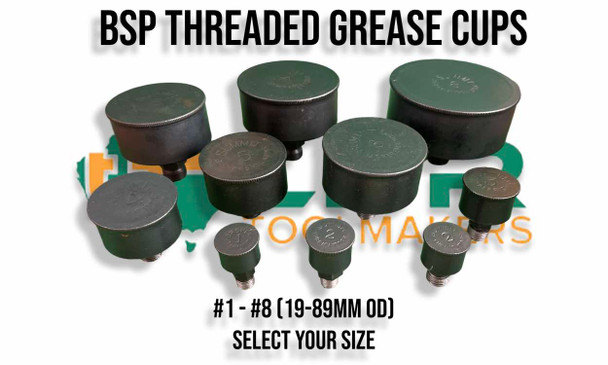

GREASE CUPS - BSP THREADED
AVAILABLE IN 1/8" - 1/4" - 3/8" BSP THREAD. PLEASE SEE CHART BELOW
Our grease cups are made from solid steel with the shanks having nipples of solid bar. They are both stronger and more durable making these grease cups great value for money on your equipment. The thread on the shanks allow it to screw solidly to the hexagon shoulder, therefore giving your cup a lock grip so it can't come loose.
The cap is screwed right to the back and discharges the whole content for filling, giving maximum grease feed capacity for each size. These little guys we sell Australia wide to hobbyists & farmers.
Adjustable internal thread which allows you to force grease into your targeted area.
#'s 1, 2, 2A, 3 & 4 & 5 are suited more for Small Model and Machine parts.
#'s 6, 6A, 7 & 8 are suited more for Steam Traction and Petrol Engines.
CUP # |
THREAD SIZE |
O.D OF CUP |
CUP HEIGHT |
1 | 1/8" BSP | 19MM (3/4") | 16MM (5/8") |
2 | 1/8" BSP | 25MM (1") | 19MM (3/4") |
2A | 1/4" BSP |
25MM (1") | 19MM (3/4") |
3 | 1/4" BSP | 32MM (1.1/4") | 20MM (25/32") |
4 | 1/4" BSP | 41MM (1.5/8") | 25MM (1") |
5 | 1/4" BSP | 51MM (2") | 25MM (1") |
6 | 1/4" BSP | 60MM (2.3/8") | 32MM (1.1/4") |
6A | 3/8" BSP | 60MM (2.3/8") | 32MM (1.1/4") |
7 | 3/8" BSP | 70MM (2.3/4") | 32MM (1.1/4") |
8 | 3/8" BSP | 89MM (3.1/2") | 35MM (1.3/8") |
