APRICA GEAR CUTTER ARBORS AVAILABLE IN THE FOLLOWING

Please note Cutters in pictures are not included they can be purchased in our store.

To suit gear cutter, slitting saws, side & face cutters.

METRIC & IMPERIAL BORES - READ OPTIONS BELOW

Made from hardened & tempered tool steel.

These arbors can be used directly out of your lathe or milling machine.

Straight holders should be used in a collet chuck or side lock holder.

NOTE: All 3MT HOLDERS HAVE A 12MM X 1.75 DRAWBAR BACK

Arbors to select from:

13mm straight shank - Takes 12mm bore Cutters (4 spacers, 3mm key, 100mm long)
20mm straight shank - Takes 16mm bore Cutters (4 spacers, 3mm key 105mm long
20mm straight shank - Takes 22mm bore Cutters (4 spacers, 5mm key 110mm long

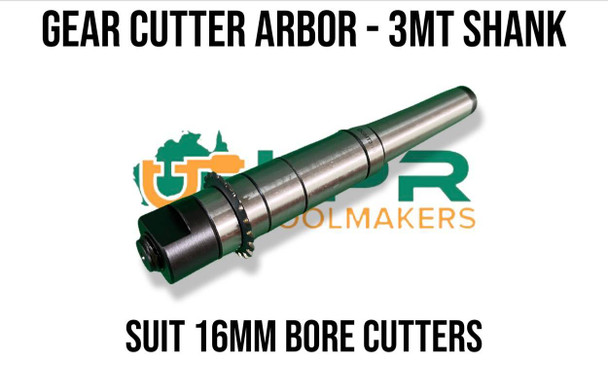

3MT shank - Takes 16mm bore Cutters (4 spacers, 3mm key, 200mm long) 12MM X 1.75 DRAWBAR BACK
3MT shank - Takes 22mm bore Cutters (4 spacers, 5mm key, 200mm long) 12MM X 1.75 DRAWBAR BACK
3MT shank - Takes 27mm bore Cutters (4 spacers, 5mm key, 200mm long) 12MM X 1.75 DRAWBAR BACK
3MT Shank - Takes 1" bore Cutters (4 spacers, keyed, 150mm long) 12MM X 1.75 DRAWBAR BACK
30INT Shank - Takes 22mm bore Cutters 12MM X 1.75 DRAWBAR BACK
- 30INT Shank - Takes 1" bore Cutters 12MM X 1.75 DRAWBAR BACK
- - 40INT Shank - Takes 22mm bore Cutters 16MM X 2.0 DRAWBAR BACK
  - - R8 Shank - Takes 22mm Cutters 7/16" UNF DRAWBAR BACK
    - - R8 Shank - Takes 1" bore Cutters 7/16" UNF DRAWBAR BACK
