Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm

SKU:
CARDR-01
Availability:
If in stock (Please see below price for current stock level) - Ships same day if ordered between Monday-Friday & before 3.30PM Victorian time.
Shipping:
Calculated at Checkout
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
  • Carbide Solid Metric Drills - Up To 65HRC | 3mm to 19.5mm
$26.95

Description

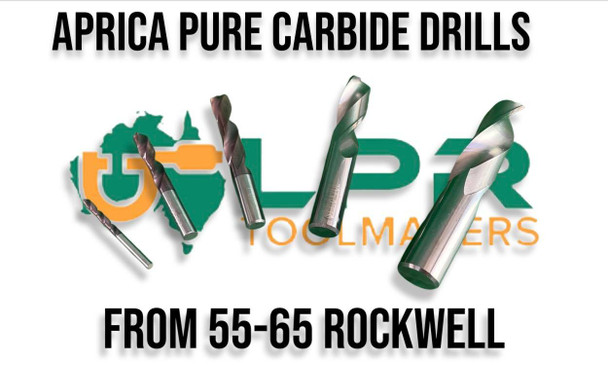

SOLID CARBIDE METRIC DRILLS

FROM 3-19.5MM (55-65HRC - Please see hardness for each size)



FOR EXTREME DRILLING CONDITIONS

These specially made solid carbide drills will cut through almost all materials with high tolerance, through hardened steels, and  all stainless alloy & cast steels.

Broken taps and easy outs can be drilled out using these drills.

Carbide drills provide faster cutting rates, longer tool life, better positional and dimensional accuracy and improved surface finish. Shorter cycle times and tighter tolerances translate into maximum machine utilization, better part quality and optimum hole making cost savings.

Solid carbide drill bits with a hardness of 65HRC are considered to be extremely hard and wear-resistant. This high level of hardness allows these drill bits to maintain their sharpness and cutting ability for longer periods of time, even when drilling into tough materials.



65HRC Drills

Drilling with solid carbide drill bits with a hardness of 65HRC requires careful attention to cutting parameters, such as cutting speed, feed rate, and coolant use. These drill bits are designed to operate at high speeds and require sufficient coolant to prevent overheating and premature wear.

When drilling with solid carbide drill bits with a hardness of 65HRC, it's important to use the correct cutting speed and feed rate for the material being drilled. A slower cutting speed and lower feed rate may be required when drilling harder materials, while softer materials may allow for higher cutting speeds and feed rates.

It's also important to ensure that the drill bit is held securely in the drill chuck to prevent slipping or breakage during drilling. Using a proper drill press or machine tool with adequate clamping force is recommended.

Overall, solid carbide drill bits with a hardness of 65HRC are a durable and effective choice for drilling into tough materials, but careful attention to cutting parameters and tool handling is required to ensure their best performance and longevity.

OUR SELECTIVE RANGE OF 55-65HRC DRILL BITS

OD SIZE

LENGTH

HARDNESS HRC

3.0mm

38mm

HRC65

4.0mm

45mm

HRC65

5.0mm

50mm

HRC65

5.6mm

50mm

   HRC65

5.7mm

50mm

HRC65

5.8mm

50mm

HRC65

5.9mm

50mm

HRC65

6.0mm

50mm

HRC65

7.6mm

50mm

HRC65

7.7mm

60mm

HRC65

7.8mm

60mm

HRC65

7.9mm

60mm

HRC65

8.0mm

60mm

HRC65

9.6mm

60mm

HRC65

9.7mm

65mm

HRC65

9.8mm

65mm

HRC65

9.9mm

65mm

HRC65

11.6mm

70mm

HRC65

11.7mm

70mm

HRC65

11.8mm

70mm

HRC65

11.9mm

70mm

HRC65

12.0mm

70mm

HRC65

15.6mm

80mm

HRC55

15.7mm

80mm

HRC55

15.8mm

80mm

HRC55

15.9mm

80mm

HRC55

16.0mm

85mm

HRC55

19.5mm

90mm

HRC55
