Description
INDEXABLE BORING BAR KITS

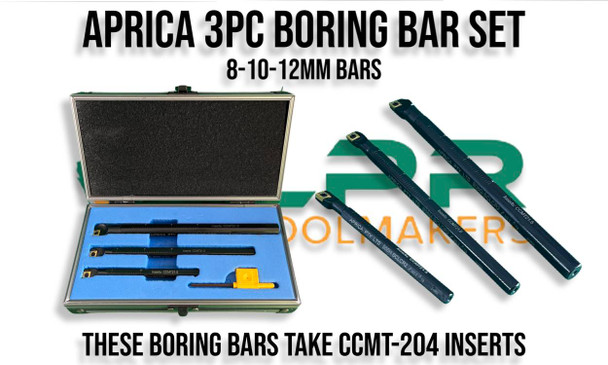

OPTION 1: 3 PC Carbide Insert Boring Bar Kit featuring a 8mm,10mm &12mm Boring Bar complete with ISO Standard inserts and key.
OPTION 2: 4 PC Carbide Insert Boring Bar Kit featuring a 10mm,12mm,16mm & 20mm Boring Bar complete with ISO Standard inserts and key.
- Upgrade from HSS & Braze On's - Cut faster.
- More rigid, holders are hardened & ground.
- Three point Index able carbide, more economical.
- We supply spare inserts, screws & torx keys if you ever need them down the track
The Boring Bars come supplied with a Positive Rake insert on each bar.
ALL OUR TIPS ARE (ISO Standard)
3pc Set includes:
SPARE INSERTS - CCMT 06204 Titanium Coated - CLICK HERE
Type |
Shank Dia |
Length |
Insert |
|
8mm 10mm 12mm
|
100mm 125mm 150mm
|
CCMT 204 CCMT 204 CCMT 204
|
4pc Set includes:
SPARE INSERTS - CCMT 09204 Titanium Coated - CLICK HERE (Small Bars take our CCMT06204 Inserts)
Type |
Shank Dia |
Length |
Insert |
|
10mm 12mm 16mm 20mm
|
125mm 150mm 200mm 250mm |
CCMT 06204 CCMT 09204 CCMT 09204 CCMT 09204
|
