Description
Aprica Brand BSF Taps & Die Set Combo
Simply choose the size you require from the options above - Price varies.
Specially manufactured for LPR Toolmakers.
Made from Carbon Steel to ISO standards.

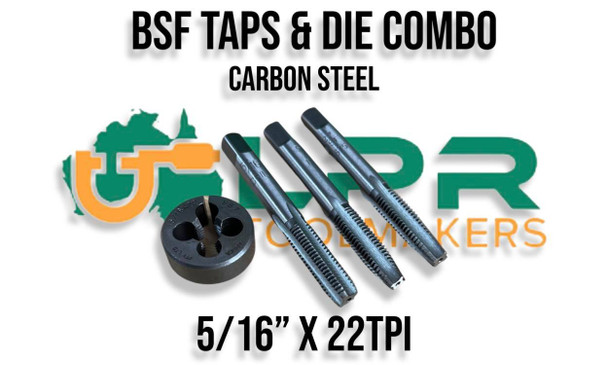

Includes 3pc tap set along with the matching sized die.
Our combo's are designed to save you $$$ instead of buying singles.

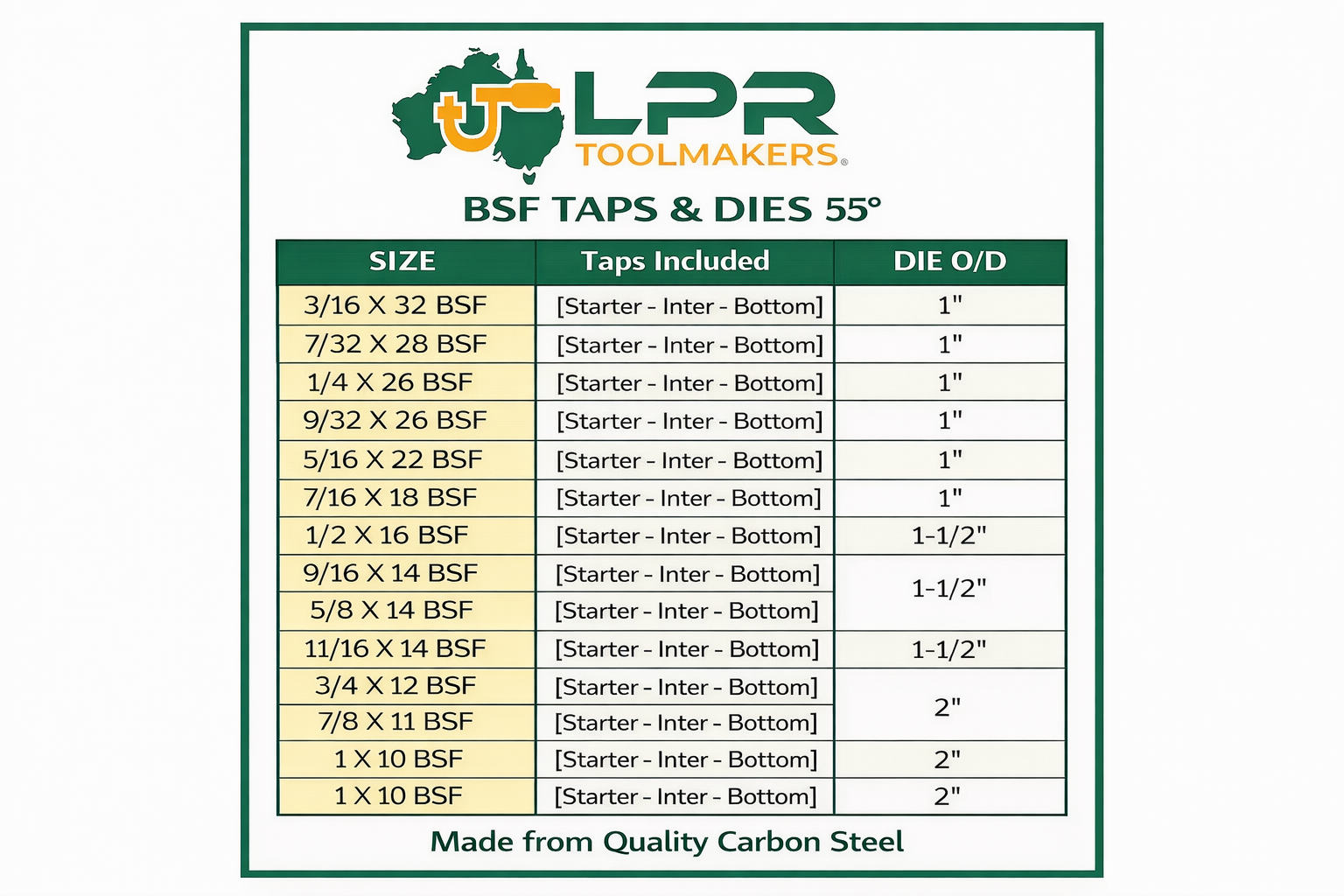

We stock the following sizes (view table below for further detail)
3/16", 7/32", 1/4", 9/32", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 7/8", 1".
SIZE 55dec |
TAP CODE |
DIE CODE |
DIE 0/D |
3/16 X 32 BSF | TPRT-3700 | TPRD-3700 | 1" |
7/32 X 28 BSF | TPRT-3701 | TPRD-371 | 1" |
1/4 X 26 BSF |
TPRT-3702 |
TPRD-3702 | 1" |
9/32 X 26 BSF | TPRT-3704 | TPRD-3704 | 1" |
5/16 X 22 BSF |
TPRT-3708 |
TPRD-3708 | 1" |
3/8 X 20 BSF |
TPRT-3712 |
TPRD-3712 | 1" |
7/16 X 18 BSF |
TPRT-3716 |
TPRD-3716 | 1" |
1/2 X 16 BSF |
TPRT-3720 |
TPRD-3720 | 1-12" |
9/16 X 16 BSF |
TPRT-3724 |
TPRD-3724 | 1-12" |
5/8 X 14 BSF |
TPRT-3728 |
TPRD-3728 | 1-12" |
11/16 X 14 BSF |
TPRT-3732 |
TPRD-3732 | 1-1/2" |
3/4 X 12 BSF |
TPRT-3736 |
TPRD-3736 | 1-1/2" |
7/8 X 11 BSF |
TPRT-3737 |
TPRD-3737 | 2" |
1 X 10 BSF | TPRT-3738 | TPRD-3738 | 2" |
*please Note Carbon Steel Taps & Dies are not recommended for Stainless Steel and other High Tensile Steels, we recommend HSS Taps & Dies for this purpose
Also when re-tapping welded up holes HSS would be a more better option for that purpose.
