4 Jaw Self Centering Chucks - 80 I 100 I 130 I 160mm

SKU:
4JSCC-80
Shipping:
Calculated at Checkout
  • 4 Jaw Self Centering Chucks - 80 I 100 I 130 I 160mm
  • 4 Jaw Self Centering Chucks - 80 I 100 I 130 I 160mm
  • 4 Jaw Self Centering Chucks - 80 I 100 I 130 I 160mm
  • 4 Jaw Self Centering Chucks - 80 I 100 I 130 I 160mm
$148.95

Description

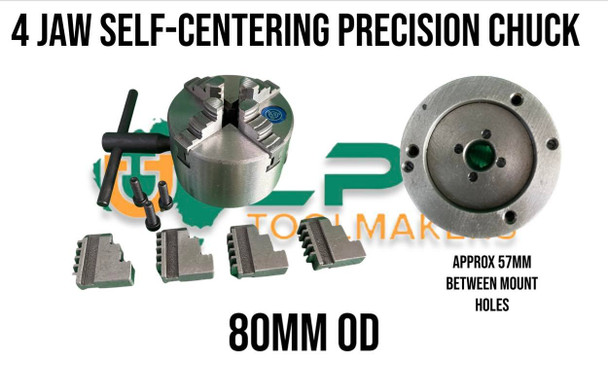

 4 Jaw Self Centering Chucks

These chucks are suitable for lathes, milling machines and grinding machines. These chucks are of high quality and will supremely assist you cutting operations in the workshop!

Select your size up above



We stock 80, 100, 130 & 160mm varieties. Each size is priced separately. Each chuck comes in its own box complete with 4 External Jaws (Hardened), Wrench & Installing Manual with all specs.



80mm - approx 57mm between mounting holes

3 x M6 Screws

Internal Jaws Clamping Range - 2-22mm

External Jaws Clamping Range - 22-63mm

--------------------------------------------------------

100mm - approx 73mm between mounting holes

3 x M8 Screws

Internal Jaws Clamping Range - 2-30mm

External Jaws Clamping Range - 30-80mm

--------------------------------------------------------

130mm - approx 100mm between mounting holes

3 x M8 Screws

Internal Jaws Clamping Range - 3-40mm

External Jaws Clamping Range - 40-120mm

--------------------------------------------------------

160mm - approx 125mm between mounting holes

3 x M8 Screws

Internal Jaws Clamping Range - 3-55mm

External Jaws Clamping Range - 55-145mm
